The throw room in CMEST
is a state-of-the-art, specially designed room for measuring the
air flow characteristics of grills, registers, diffusers, and
other types of room ventilation devices. The room is 30 ft long by
22 ft wide. It has a 3-ft raised floor for testing floor diffusers
and under-floor air distribution systems. The height of the room
ceiling can be varied from 8 ft to 13 ft. The throw room can be
used to conduct full-scale mockup tests of the airflow and sound
characteristics of ceiling air terminals and above-the-ceiling air
terminal devices.

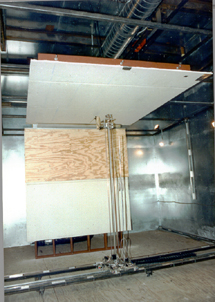

The room contains a
computer-controlled, four-axis (three translational axes and one
rotational axis) traversing system. This system is used in

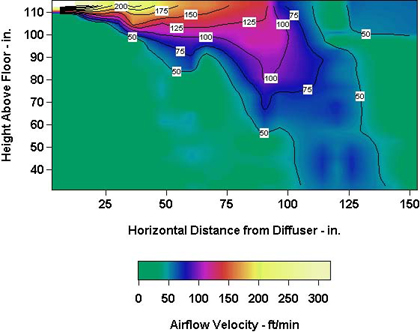

conjunction with a three-wire, hot-wire anemometer and other
related transducers to measure the flow-velocity characteristics
of grills, registers, diffusers, or other ventilation devices that
may be in the room. The four-axis traversing system can be
programmed to make measurements at specified points within the
room or to set the room up in a three-dimensional grid pattern and
then make measurements by sequentially scanning the grid points.
|
